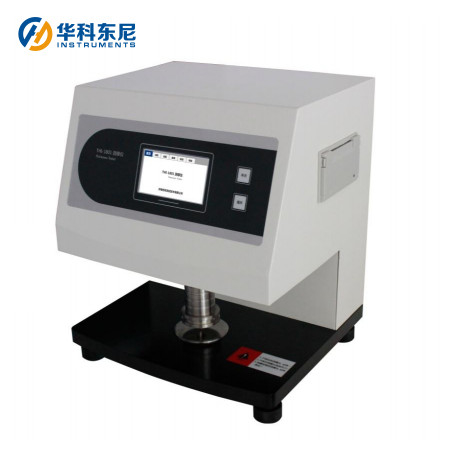

ASTM D645 Laboratory Multi-Material Thickness Tester HTZ 181

Large Image : ASTM D645 Laboratory Multi-Material Thickness Tester HTZ 181

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-181

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-181	Iterm:	Laboratory Multi-Material Thickness Tester
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ASTM D645, ASTM D374, ASTM D1777, TAPPI T411, ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, DIN 53105 Etc
High Light:	Multi Material Thickness Tester , ASTM D374 Material Thickness Tester , ASTM D1777 Material Thickness Tester

Application :This thickness tester is based on contacting method and designed to precisely measure thickness of plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films ,textile and many others.

Technical indexes

Range: 0-2mm (standard)

0-10mm(optional)

Resolution: 0.1um(standard)

Test speed: 15times/min ( Adjustable)

For film: Test area: 50mm2

Test pressure: 17.5±1kPa

For paper: Test area: 200mm2

Test pressure: 50±1kPa

Power supply: AC220V 50Hz

Dimension: 330mm (L) X 285mm (W) X 370mm (H)

Net weight: 38kg

Standard

ASTM D645, ASTM D374, ASTM D1777, TAPPI T411, ISO 4593, ISO 534, ISO 3034, GB/T

6672, GB/T 451.3, GB/T 6547, DIN 53105, DIN 53353, JIS K6250, JIS K6328, JIS K6783, JIS

Z1702, BS 3983, BS 4817

Features

1.touch screen operation

2.Manual test and automatic test

3.Multiple ranges selectable(before purchase)

4.Micro-printer prints mini-report

5.Result with multiple units display

6.Sample auto feeder available. (optional)

7. Traceable standard block calibration

accessories:

main-unit, calibration block(500um or1000um).

Optional: Sample auto feeder, professional computer software, calibration block, cable.
